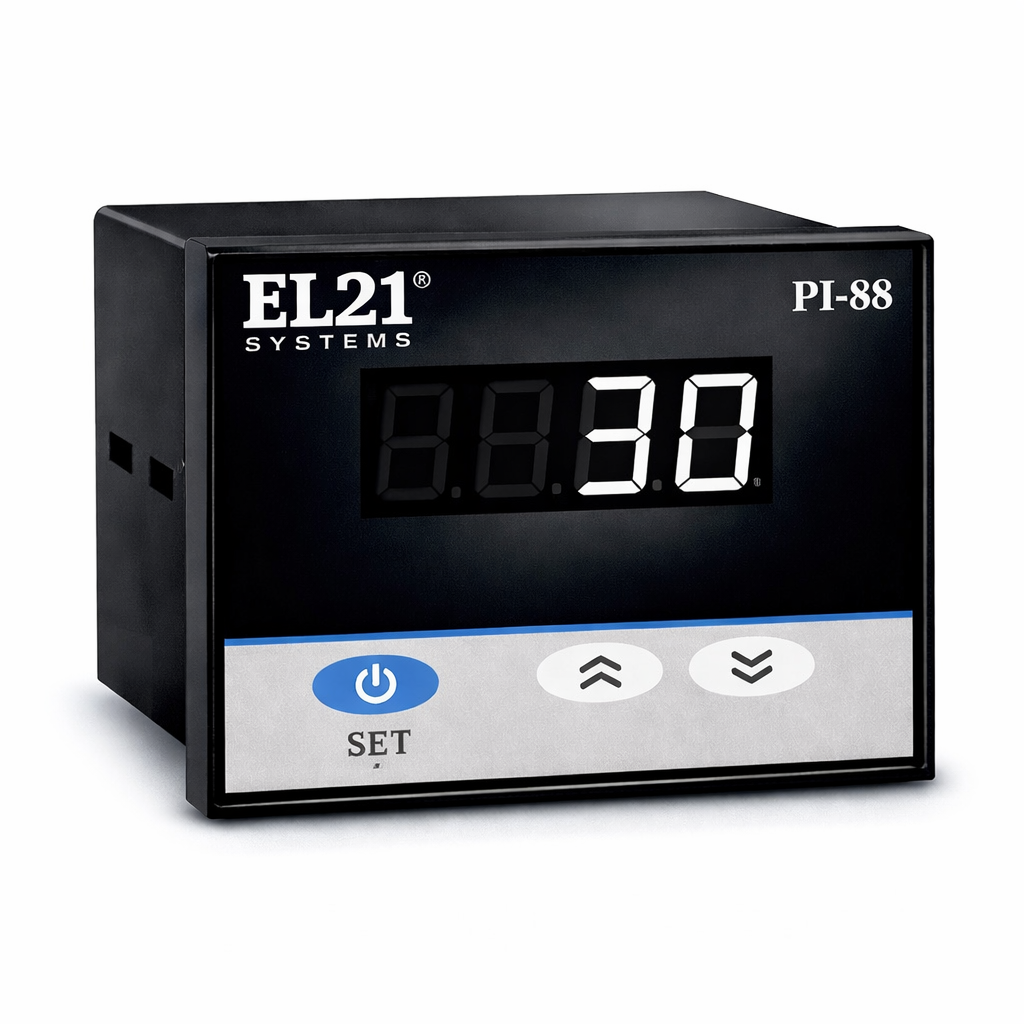

The Digital Process Indicator is a high-precision industrial instrument designed to measure and display analog process signals with excellent accuracy, stable performance, and clear LED indication, making it ideal for control panel applications.
| Value | Details |
|---|---|
| Measurement Input: | Analog Inputs: 0–20 mA, 4–20 mA, 0–1 VDC, 0–3.3 VDC, 0–5 VDC, 0–10 VDC (Selectable) |
| Display Type: | 4-Digit, 7-Segment LED Display (White) |
| Alarm Output: | Not Available (Display / Indicator Only) |
| Supply Voltage: | 90–270 V AC, 50/60 Hz |
Wide selectable current and voltage input ranges
Bright white LED display for clear visibility
High measurement accuracy with selectable resolution
User-selectable digital filtering for stable readings
Supports user calibration and factory calibration
| Model | PI-44 | PI-77 | PI-88 | PI-99 |
|---|---|---|---|---|
| 1. DISPLAY TYPE : 4-Digit 7 segment LED (WHITE) | ||||
| Display height | 0.36″ | 0.56″ | 0.56″ | 0.56″ |
| 2. INPUT | ||||
| Analog Input | 0 – 20mA, 4 – 20mA & 0 – 1, 0-5, 0-3.3, 0-10 VDC (Selectable) | |||
| Range | -1999 to 9999 | |||
| Resolution | 0.001, 0.01, 0.1 & 1°C (Selectable) | |||
| Digital Filter | 1 to 10 (Selectable) | |||
| 3. ENVIRONMENTAL | ||||
| Operating Range | 0 ~50°C, 5~90% Rh | |||
| Storage Humidity | 95% Rh (Non-condensing) | |||
| 4. POWER SUPPLY | ||||
| Supply Voltage | 90~270VAC, 50/60Hz. | |||
| Consumption | 4W Maximum. | |||
| 5. PHYSICAL | ||||
| Housing | ABS Plastic. | |||
| Weight (gms.) | 130 | 200 | 200 | 240 |
